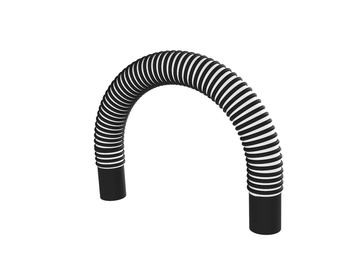

Hose for mobile suction dredger

Transportation of hard material in different grain sizes in wet and dry conditions. The hoses are characterized by abrasion resistance, flexibility and low bending radius. For mobile suction dredger vehicles from all major manufacturers.

Individual adjustment of each type with different wall thicknesses and designs. Temperature resistant from -30 ° C to + 80 ° C.

Construction:

  • Highly abrasion-resistant tube
  • Tension resistant fabric inlays
  • Concealed steel spiral
  • Abrasion-resistant, weather-resistant cover
  • Interior smooth, exterior corrugated
  • Optional: electrically conductive

ND [mm] Wall thickness [mm]
200 8
200 10
250 8
250 10
250 15
250 19
300 10
300 15
300 20

In different fixed lenghts with cuffed ends.


Other versions and dimensions on request.
